How to Effectively Manage Data Lifetime with DynamoDB Time to Live

Amazon DynamoDB Time to Live (TTL) is a feature that allows you to manage the expiration of items in a DynamoDB table automatically. It simplifies removing outdated or stale data by enabling you to specify a timestamp attribute in your items, indicating when the items should expire.

DynamoDB TTL feature removes the need for manual cleanup of expired table items, and it helps improve cost efficiency by deleting unnecessary data. Also, it provides performance improvement as it reduces the number of items to be processed on your queries and scans on the Table.

In this blog post, let’s learn how you can enable DynamoDB Time To Live on your tables, how to write data that can be automatically deleted, and also some things you need to keep in mind when using this feature.

We will be using .NET for the application code. However, the concepts still apply to other programming languages.

This article is sponsored by AWS and is part of my AWS Series.

Enable Time to LIve on DynamoDB Table

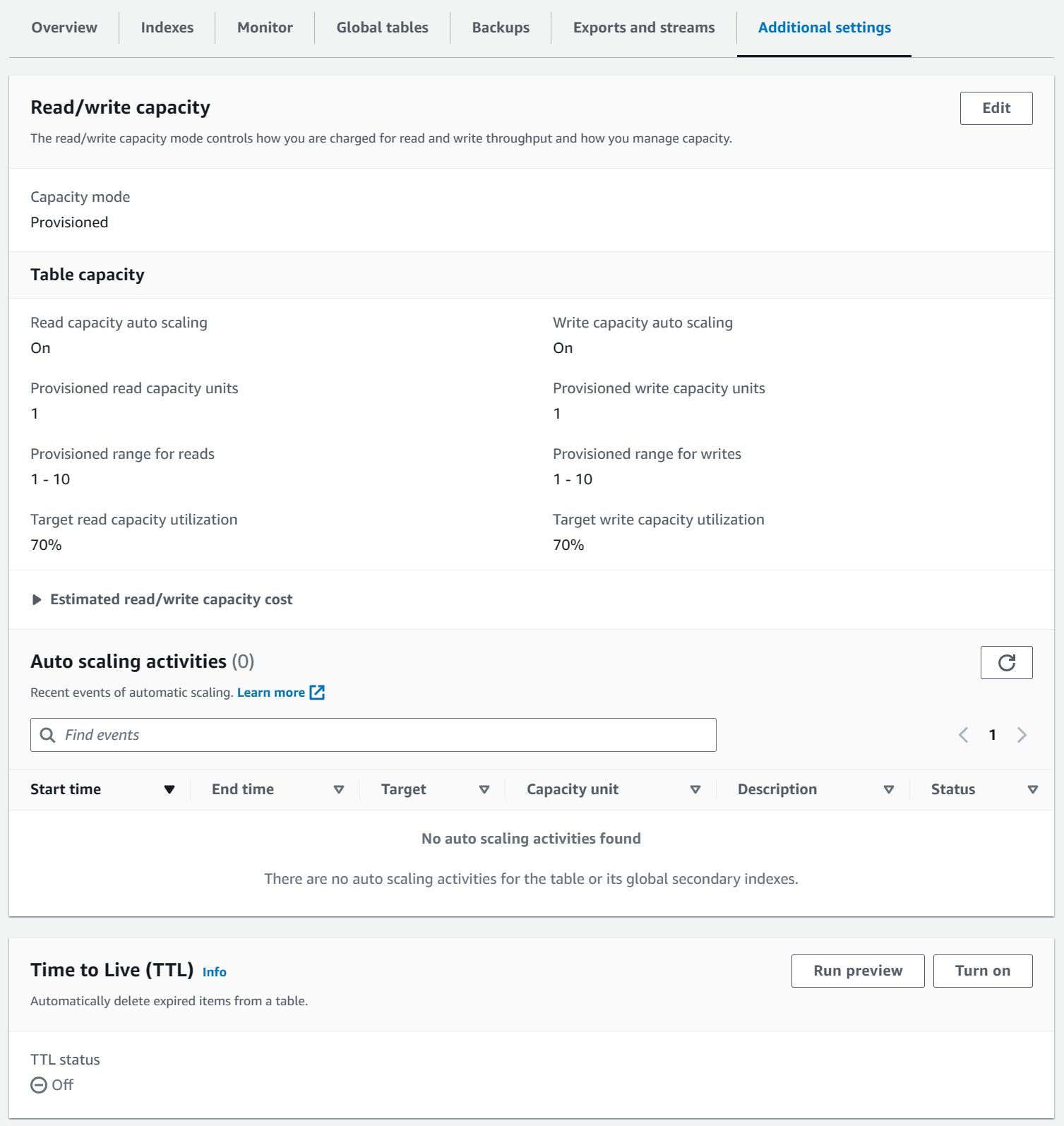

You can enable Time to Live(TTL) on a DynamoDB table from the Additional Settings section on the Table details, as shown below.

Select the 'Turn on' button to enter the details for Time to Live.

Specify the property name from the Table item record for the Time to Live (TTL) property.

Below, I have specified the property with the name ttl as the property to use for Time to Live on the WeatherForecast table.

Once specified and turned on, Time to Live is active on the DynamoDB table.

To change the TTL property details, turn it off on the Table and then turn it on again with the new property details.

Adding Items with Time to Live

When adding items to the Table, populate the item with the property specified in the Time to Live settings.
Below, I have the property Ttl on the WeatherForecastTable item. For backward compatibility with existing items, I have made it optional.

To map to the appropriate casing as specified in the TTL settings for the Table, I am using the DynamoDBProperty attribute to explicitly specify the column name to map to in the DynamoDB table item.

[HttpPost("post-weather-forecast-table-ttl")]
public async Task PostWeatherForecastWithTTL(WeatherForecastTable data)
{
    data.Date = data.Date.Date;
    data.Ttl = DateTimeOffset.UtcNow.AddMinutes(1).ToUnixTimeSeconds();
    await _dynamoDbContext.SaveAsync(data);
}

public class WeatherForecastTable
{
    public string CityName { get; set; }
    public DateTime Date { get; set; }
    public string TemperatureC { get; set; }
    public string? Summary { get; set; }

    [DynamoDBProperty("ttl")]
    public long? Ttl { get; set; }
}

Format Conditions For TTL DynamoDB Attribute

The attribute specified as the Time to Live property on the Table must be of Number type. The value must be specified as a Unix epoch time format in seconds.

The TTL processes will ignore the item if the property is missing or not in the valid format.

The value specified must also be less than five years in the past, otherwise the TTL process will not expire the item.

The above code in .NET specifies the Ttl property as a long type and sets it using the ToUnixTimeSeconds method on DateTimeOffset

Preview TTL Items

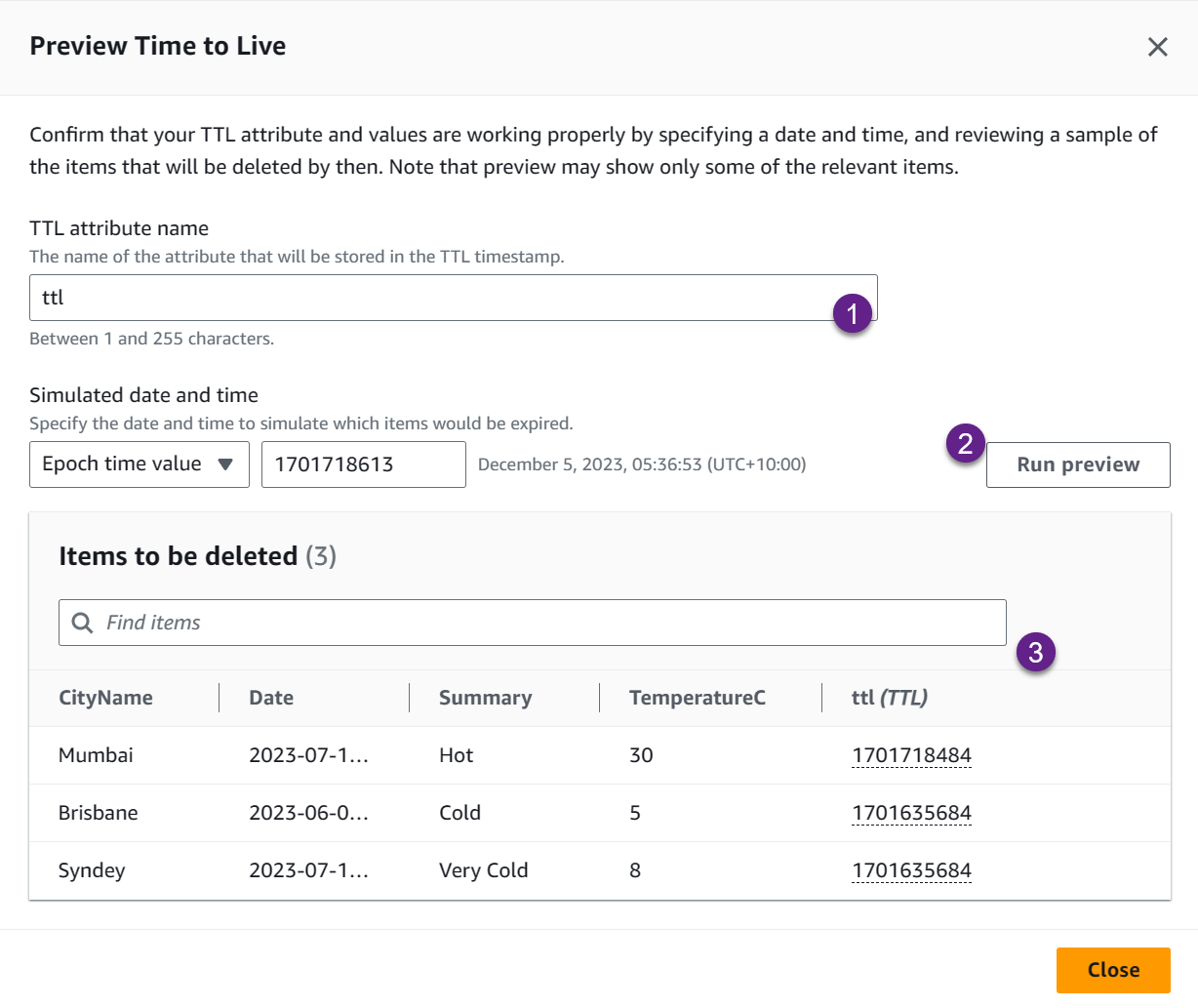

The AWS Console provides a Preview feature to see a subset of upcoming items that will be automatically deleted.

This is only a subset of items marked for deletion, not an exhaustive list.

How DynamoDB TTL Works

Once you enable TTL on a table, DynamoDB runs a per-partition scanner background process that continuously evaluates the expiry status of items in the Table.

The process compares the current Unix epoch time (UTC) seconds against the value recorded against the TTL property for the DynamoDB table.

If the record is older than the current time, it marks the item as expired.

A second background process scans for expired items and deletes them. These processes happen automatically and do not affect read or write traffic to the Table.

Querying Items and Time to Live

DynamoDB items that have expired but haven't yet been deleted by the TTL background processes will still appear in reads, queries, and scans.

Such items can also be updated, which might affect their expiration status.

When querying data from the application, you need to explicitly filter them out to ensure expired items are not used.

E.g., when querying all WeatherForecastTable items for a given city, the below code passes a FilterExpression to filter out items that have already expired.

It uses the DateTimeOffset.UtcNow to calculate the current Unix epoch time and pass that to the query function.

Since, in our case, the Time to Live property name is ttl, which is also a reserved keyword; we need to pass in the explicit property name as a ExpressionAttributeNameto pass in the explicitly

[HttpGet("city-name-low-level-expressions-ttl")]
public async Task<IEnumerable<WeatherForecastTable>> GetAllForCityLowLevelExpressionsTtl(string cityName, long? ttl)
{
    ttl = ttl ?? DateTimeOffset.UtcNow.ToUnixTimeSeconds();
    var queryRequest = new QueryRequest()
    {
        TableName = nameof(WeatherForecastTable),
        KeyConditionExpression = "CityName = :cityName",
        FilterExpression = "attribute_not_exists(#timeToLive) OR #timeToLive >= :timeToLive",
        ExpressionAttributeNames = new Dictionary<string, string>()
        {
            {"#timeToLive", "ttl"}
        },
        ExpressionAttributeValues = new Dictionary<string, AttributeValue>()
        {
            {":cityName", new AttributeValue(cityName)},
            {":timeToLive", new AttributeValue() {N = ttl.ToString()}}
        }
    };

    var response = await _dynamoDbClient.QueryAsync(queryRequest);

    return response.Items.Select(a =>
    {
        var doc = Document.FromAttributeMap(a);
        return _dynamoDbContext.FromDocument<WeatherForecastTable>(doc);
    });
}

The above query returns all records that either do not have a ttl property set or ones that haven't expired yet.

Based on your application needs, you can use the appropriate filter expressions.

DynamoDB Streams and TTL Auto-Deleted Messages

Items deleted automatically by the TTL background processes will also appear in the DynamoDB stream events.

DynamoDB Streams capture a time-ordered sequence of events in any DynamoDB table. If you want to get started using DynamoDB streams, check out the blog post linked below.

DynamoDB Streams and AWS Lambda Trigger in .NET

DynamoDB Streams capture a time-ordered sequence of events in any DynamoDB table. Let’s learn how to enable DynamoDB Streams, different stream types and how to consumer stream changes from a .NET AWS Lambda Function.

Rahul NathRahul Pulikkot Nath

Items that are deleted by the TTL processes have the following field values.

• Records[<index>].userIdentity.type → 'Service'
• Records[<index>].userIdentity.principalId → 'dynamodb.amazonaws.com'

You can learn more about DynamoDB Streams and Time to Live in the documentation here.
